Home > Copper Nickel > Copper Nickel Tubing
In the heart of Muscat’s vibrant industrial sector, Laila Pipes and Tubes has established itself as a cornerstone of quality and dependability. We take immense pride in our expertise with Copper Nickel tubing, providing robust solutions that stand up to the region’s demanding marine and industrial environments. Our commitment is not just to supply materials, but to deliver assurance, ensuring every length of tubing meets the precise needs of Oman’s growing infrastructure and beyond, backed by our unwavering dedication to customer service and technical support.
Copper Nickel tubing’s exceptional strength comes from its unique composition, primarily a blend of copper with nickel and often small amounts of iron and manganese. This alloy creates a material with outstanding mechanical properties, including excellent tensile strength and remarkable ductility, allowing it to be formed and installed with ease. Its true hallmark, however, is a natural resistance to corrosion, especially against saltwater, making it incredibly durable and long-lasting even in the most challenging conditions, which is why it’s often the first choice for critical applications.
Specifications : ASTM / ASME SB 111 / 151 / 466
Standard : ASTM, ASME and API
Size : 1/2″ TO 6′ IN OD & NB IN Various SWG & SCH
Outer Diameter : 4.00 to 22.00 mm
Well Thickness : Between 0.15mm and 1.50 mm
Length : Single Random, Double Random & Required Length
Schedule : SCH20, SCh20, SCh30, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Types : Seamless / ERW / Welded / EFW / Fabricated / CDW
Form : Round Tubes, Square Tubes, Rectangular Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes
End : Plain End, Beveled End, Treaded
Grades : Copper Nickel 90/10 (C70600 ), Cupro Nickel 70/30 (C71500), UNS C71640
| Grade | Cu | Mn | Pb | Ni | Fe | Zn |
| Cu-Ni 90-10 | 88.6 min | 1.0 max | .05 max | 9-11 max | 1.8 max | 1 max |
| Cu-Ni 70-30 | 65.0 min | 1 max | .05 max | 29-33 | 0.4-1.0 | 1 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Copper Nickel 90-10 / 70-30 | 0.323 lb/in3 at 68 F | 2260 F | 50000 psi | 90-1000 psi | 30 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Copper Nickel 90/10 | 2.0872 | C70600 |
| Copper Nickel 70/30 | 2.0882 | C71500 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Choosing Copper Nickel Tubing from Laila Pipes and Tubes ensures outstanding corrosion resistance, high strength, and durability. Our Tube is designed for diverse industrial applications, delivering reliability and performance in challenging environments while maintaining competitive pricing.
Laila Pipes and Tubes, one of the largest suppliers of Copper Nickel Tubing in Muscat, OMAN, offers a comprehensive range of high-quality pipes and tubes suitable for various industrial applications. Their extensive inventory and commitment to exceptional service make them a go-to choice for copper nickel products in the region.
| Wall | Sizes ( O.D.) |
|---|---|
| .010 | 1/16″, 1/8″, 3/16″ |
| .020 | 1/16″, 1/8″, 3/16″, 1/4″, 5/16″, 3/8″ |
| .012 | 1/8″ |
| .016 | 1/8″, 3/16″ |
| .028 | 1/8″, 3/16″, 1/4″, 5/16″, 3/8″, 1/2″, 3/4″, 1″, 1 1/2″, 2″ |
| .035 | 1/8″, 3/16″, 1/4″, 5/16″, 3/8″, 7/16″, 1/2″, 16″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 1 5/8″, 2″, 2 1/4″ |
| .049 | 3/16″, 1/4″, 5/16″, 3/8″, 1/2″, 16″, 5/8″, 3/4″, 7/8″, 1″, 1 1/8″, 1 1/4″, 1 1/2″, 1 5/8″, 2″, 2 1/4″ |
| .065 | 1/4″, 5/16″, 3/8″, 1/2″, 16″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 1 5/8″, 1 3/4″, 2″, 2 1/2″, 3″ |
| .083 | 1/4″, 3/8″, 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 1 5/8″, 1 7/8″, 2″, 2 1/2″ ,3″ |
| .095 | 1/2″, 5/8″, 1″, 1 1/4″, 1 1/2″, 2″ |
| .109 | 1/2″, 3/4″, 1″, 1 1/4″, 1 1/2″, 2″ |
| .120 | 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1 1/4″, 1 1/2″, 2″, 2 1/4″, 2 1/2″, 3″ |
| .125 | 3/4″, 1″, 1 1/4″, 1 1/2″, 2″, 3″, 3 1/4″ |
| .134 | 1″ |
| .250 | 3″ |
| .375 | 3 1/2″ |
Yes, we offer custom sizes for Copper Nickel Tubing to meet your specific requirements. Our team at Laila Pipes and Tubes is committed to providing tailored solutions for all your Piping & tubing needs. For more details, contact us at sales@lailapipes.com.

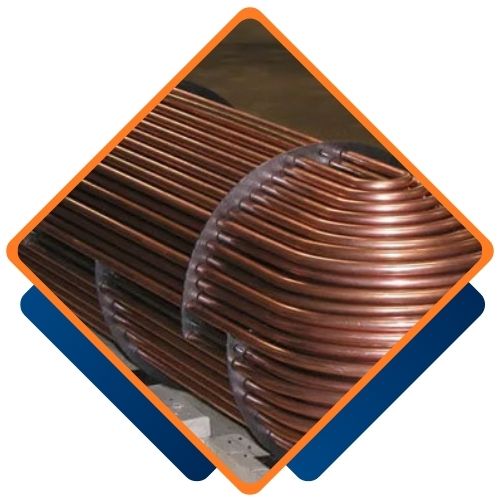

Copper Nickel Tubing finds its place in industries where strength and corrosion resistance are crucial. In the marine sector, it’s used for seawater piping, desalination plants, and shipbuilding. The oil and gas industries rely on it for process lines, cooling water, and firewater systems. Chemical and petrochemical plants use it to transport aggressive fluids, while power generation facilities depend on it for heat exchangers and cooling systems. Its blend of mechanical strength, corrosion resistance, and long-term durability makes Copper Nickel Tubing an ideal option for critical industrial applications.
