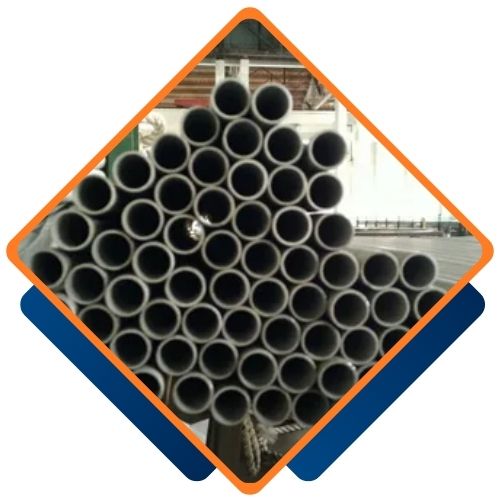

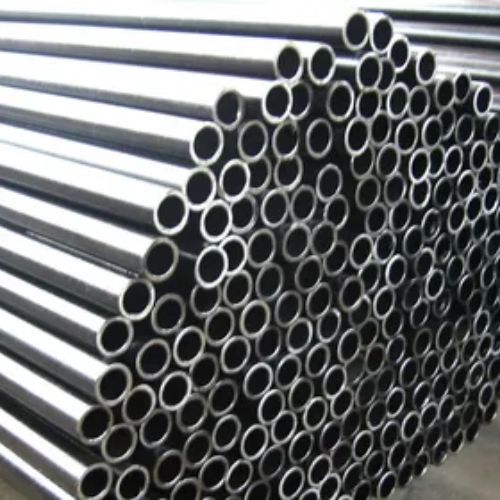

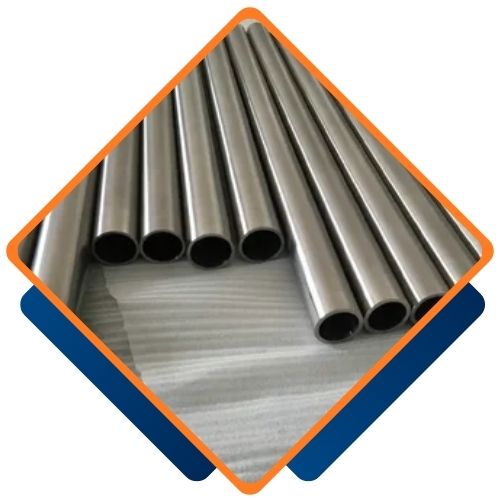

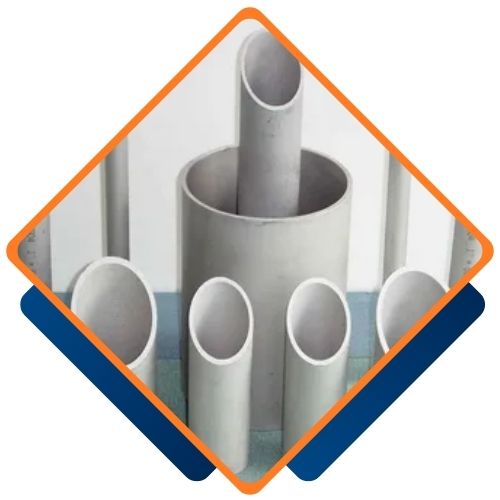

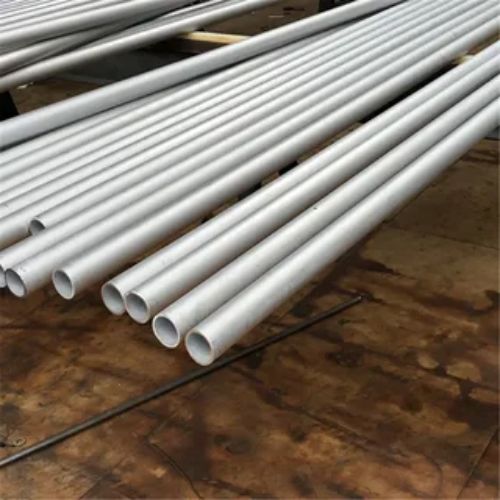

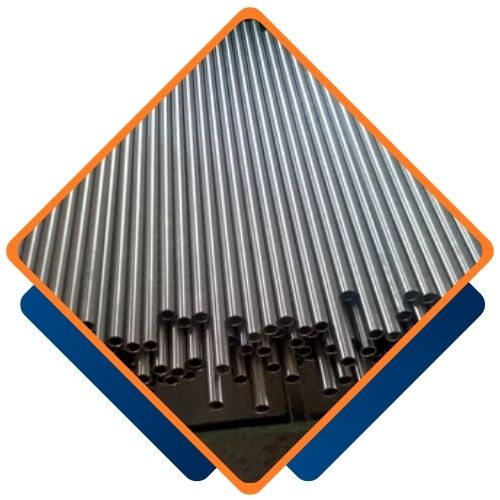

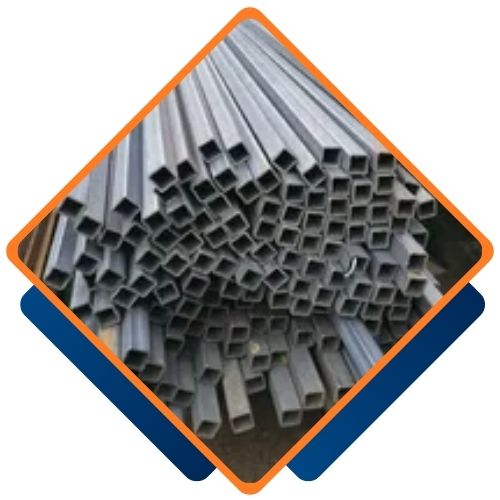

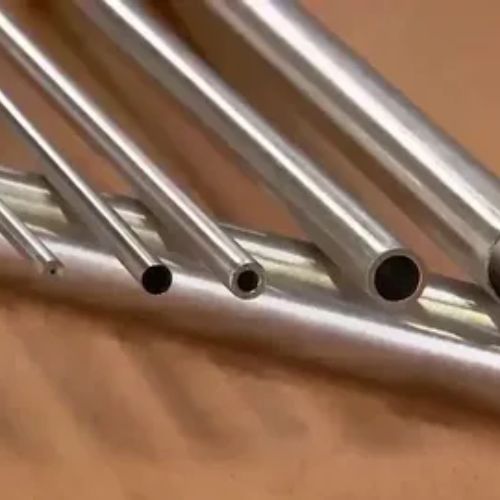

Laila Pipes and Tubes, located in Muscat, Oman, stands out as a top manufacturer and supplier of Titanium Coil Tubing, providing high-performance solutions for industries that operate in tough and corrosive environments. Thanks to their advanced manufacturing processes and rigorous quality control, the company guarantees that each coil adheres to international standards. The Titanium Coil Tubing from Laila Pipes and Tubes is designed for exceptional corrosion resistance, strength, and flexibility, making it perfect for applications in chemical processing, oil and gas, power generation, and marine sectors.
Typically, Titanium Coil Tubing is produced from commercially pure titanium or titanium alloys, which include carefully controlled amounts of elements like aluminum, vanadium, and oxygen to boost strength, toughness, and corrosion resistance. On a mechanical level, it boasts impressive tensile strength, high fatigue resistance, and good ductility, enabling it to endure bending, coiling, and extreme pressures without losing its effectiveness. Its flexibility, weldability, and biocompatibility make it ideal for specialized uses where both durability and adaptability are crucial.
| Standard | ASTM, AISI, GB, JIS, customers’ requests available |
| Size | Round Tube: OD: 16-119mm or customized |
| Thickness | 0.25mm-3.0mm |
| Length | 6m or according to customers’ request |
| Sample | Free sample is available, but freight should be paid by you |
Tolerance
| Outer diameter: ±0.2mm |
| Thickness: ±0.05mm | |
| Length: ±0.5mm | |
| Ends | In plain end or bevelled ends or as your requirements |
| Welding Line Type | ERW (Electrical Resistance Weld) |
Finishing
| A. Sanded |
| B. Gloss #400,Mirror #600 – #1000 | |
| C. Brushed | |
| D. Wood Grain | |
| E. Embossed, Threaded | |
| Application | Decorations, constructions, food industry, etc. |
| Certification | ISO, SGS |
| Round Pipe Size | 16, 17, 18, 19, 20, 21, 22, 23, 25, 28, 31.8, 35, 36, 38.1, 48, 50.8, 60, 63.5, 76.2, 89, 101, 114 mm |
| Square Pipe Size | 17, 18, 19, 20, 21, 22, 23, 24, 25, 28, 30, 36, 38, 50 mm |
| Rectangle Pipe Size | 10*30, 10*40, 10*50, 20*10, 23*11, 24*12, 25*13, 28*25, 28*13, 29*14, 30*15, 30*20, 30*22, 34*22, 36*23, 50*25, 60*30, 75*45, 95*45 mm |
| Thickness | exact 0.25, 0.28, 0.32, 0.37, 0.41, 0.51, 0.61, 0.71, 0.91, 1.11, 1.15, 1.41 mm |
| Length | 6m or according to customer’s request |
| Outer diameter | 6.35-219mm |
| Tolerance | Outer diameter :±0.2mm |
| Thickness :±0.02mm | |
| Length :±0.5mm | |
| Process method | Code drawn, annealed with nitrogen protection, ultrasonic, automatic shape, polished |
| Test | Direct-reading Spectrograph, Hydrostatic testing machine, X-ray detector, UI trasonic flaw detector, Magnetic particle detector |
| Equipment | Press machine, Bending machine, Pushing Machine, electric bevelling machine Sand-blasting machine, etc |
| Origin | West Europe / Japanese / Indian / USA / Korean / American / European |
| Test Certificates | Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade2 | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max | – | – |
| Ti Grade5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
| Titanium Gr. 5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
This Titanium Coil Tubing is crafted from high-purity titanium and titanium alloys, which offer remarkable resistance to corrosion, oxidation, and erosion, even when exposed to harsh chemicals and seawater. It boasts a high strength-to-weight ratio, good thermal conductivity, and a long service life. The coiled design ensures consistent wall thickness, precise dimensions, and easy installation in both continuous and compact systems.
Laila Pipes and Tubes, a leading supplier of Titanium Coil Tubing in Muscat, OMAN, provides a wide selection of premium pipes and tubes for diverse industrial applications. With a vast inventory and a strong focus on delivering outstanding service, they are the preferred choice for stainless steel products in the region.
You’ll find Titanium Coil Tubing commonly used in heat exchangers, condensers, chemical injection lines, instrumentation tubing, and offshore systems. Its outstanding durability, flexibility, and corrosion resistance guarantee safe, efficient, and long-lasting performance in critical applications where reliability and maintenance-free operation are a must.
Titanium Coil Tubing finds extensive application in industries that demand corrosion-resistant, flexible, and high-strength tubing solutions. In the aerospace field, it’s used for hydraulic lines, fuel systems, and engine components that require lightweight yet durable materials. The marine industry relies on it for seawater cooling systems, offshore platforms, and desalination plants, thanks to its outstanding resistance to saltwater corrosion. In the medical realm, it’s utilized for surgical instruments, implants, and prosthetics due to its biocompatibility. Furthermore, sectors like chemical processing, power generation, and industrial equipment employ it for heat exchangers, reactors, and high-performance systems where flexibility and strength are essential.
